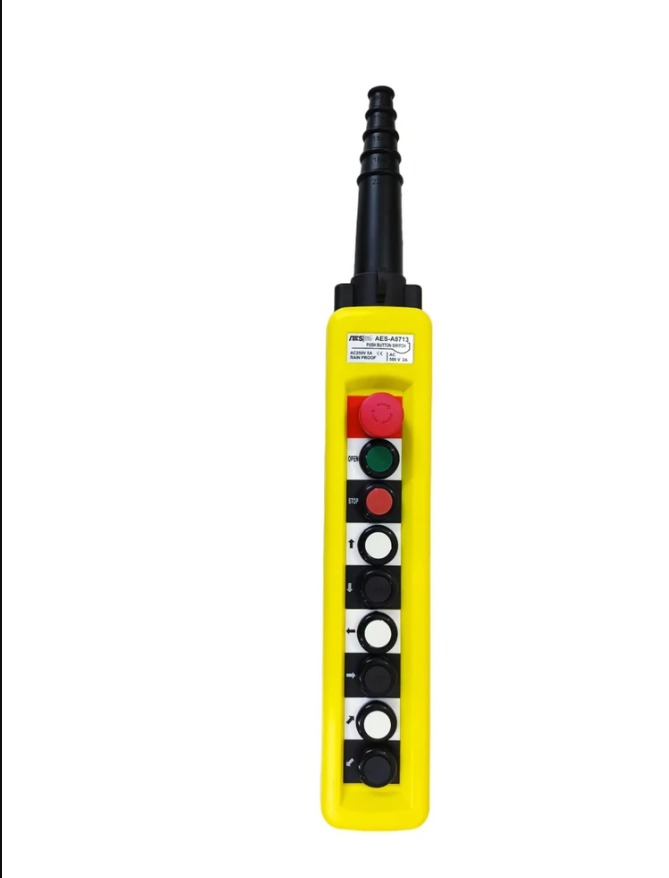

Pendant Push Buttons IP-65
Product Details:
- Automation Grade Manual
- Mechanical Life One million cycles
- Response Time 20ms
- Max. Current 10A
- Finish Type Glossy
- Rated Voltage 250V AC / 440V AC
- Number of Module 2 / 4 / 6 / 8 / 10 / 12
- Click to View more
X
Pendant Push Buttons IP-65 Product Specifications
- 660V AC
- Approx. 350g
- 100M at 500VDC
- Momentary (NO/NC)
- Pendant Suspension
- -25C to +70C
- IP-65
- 2 / 4 / 6 / 8 / 10 / 12
- -25C to +70C
- 5A / 10A
- 10 mm
- 250V AC / 440V AC
- 10A
- Glossy
- 20ms
- Yellow & Black
- 2 to 12 Poles (as per model)
- 50m
- High Impact ABS Plastic
- One million cycles
- Pendant Push Button
- 220mm x 60mm x 65mm
- Manual
Product Description
Pendant Push Buttons IP-65 is used as crane controller. Advanced features of these push buttons enables these to manage material handling systems from a certain distance. Meant for industrial applications purpose, these Pendant Push Buttons IP-65 is perfect for managing various parameters of overhead cranes and other material handling equipments used in the most demanding work environment. Available in pre-assembled design, these push buttons can easily integrate with different material handling machines. Long life span and ergonomic appearance are the key aspects of these push buttons.
Other Information
- Pay Mode Terms: RTGS (Bank Transfer)
- Port of Dispatch: DELHI / NCR
- Production Capacity: 120 per month
- Delivery Time: 7 Working Days
Engineered for Extreme Conditions
Designed with a high-impact, flame-retardant ABS enclosure, this pendant push button is built to endure tough industrial settings. It is waterproof, dustproof, and offers superior oil and chemical resistance. Its capability to withstand temperatures from -25C to +70C and high vibration environments makes it ideal for both indoor and outdoor use.
Versatile and Reliable Switching
Each button delivers smooth actuation with an operating force 3N, and is available in mushroom or flat head designs. Silver alloy contacts ensure low contact resistance and high electrical reliability. With momentary (NO/NC) circuit options and up to a million mechanical cycles, users can rely on consistent, responsive control.
Flexible Design for Easy Installation
This pendant supports a range of configurations with 2 to 12 poles and multiple module options. A rubber gland entry of 16-22mm accommodates various cable types securely. The robust, ergonomic form factor in yellow and black with a glossy finish is easy to suspend and operate in demanding locations.
FAQs of Pendant Push Buttons IP-65:
Q: How is the pendant push button installed in industrial environments?
A: The pendant features a screw type terminal for swift wiring, and a rubber gland cable entry (16-22mm) ensures a secure and waterproof fit. Its pendant suspension design makes it suitable for overhead or mobile control setups commonly found in factories or warehouses.Q: What standards does this push button comply with for safety and reliability?
A: It adheres to IEC/EN 60947-5-1 standards, ensuring its suitability and safety for industrial electrical control applications. The flame-retardant, impact-resistant ABS material and IP-65 protection further reinforce its reliability.Q: Can the pendant operate in harsh environments with exposure to oils or chemicals?
A: Yes, its enclosure is engineered to resist oils, chemicals, and dust, maintaining dependable performance even in demanding industrial scenarios. The 10-55 Hz vibration resistance ensures operational stability in settings with mechanical movement.Q: What are the operational benefits of using silver alloy contacts in the push button?
A: Silver alloy contacts deliver low contact resistance (50m), high conductivity, and durability. This translates to efficient switching, improved lifespan, and minimized signal loss in control circuits.Q: Who should use this pendant push button, and in what applications?
A: It is ideal for use by panel builders, OEMs, maintenance engineers, and operators in manufacturing, processing, and material handling. Suitable applications include hoists, cranes, and conveyor systems, where reliable, manual control is required.Q: What models and configurations are available for this product?
A: The pendant is available with 2, 4, 6, 8, 10, or 12 button modules, and in both flat and mushroom head types. Poles can be configured from 2 to 12 as per operational needs, and current ratings of 5A or 10A are available based on circuit requirements.Tell us about your requirement
