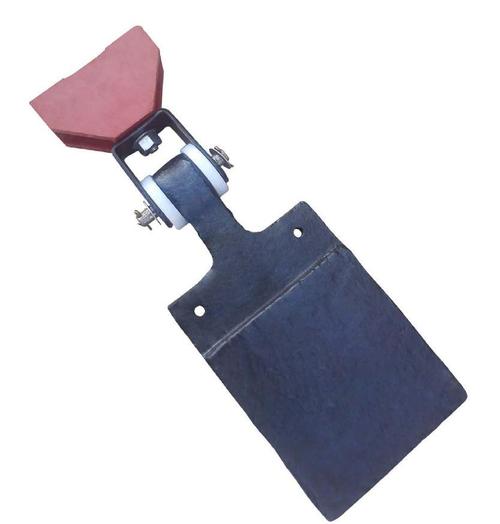

Send InquiryFlat Type Current Collector With Assembly
Price 900.00 INR/ Number
Flat Type Current Collector With Assembly Specification
- Number of Module
- 1 Module
- Response Time
- Instantaneous Hours
- Temperature Range
- -20 C to 70 C Rankine
- Finish Type
- Standard
- Circuit Type
- DC
- Automation Grade
- Manual
- Protection Level
- IP54
- Rated Voltage
- 400V Milliamperes (mA)
- Max. Current
- 25A kilovolt (kV)
- Mechanical Life
- Above 1 Million Operations Hours
- Product Type
- Flat Type Current Collector With Assembly
- Material
- Copper Alloy and Insulated Plastic
- Insulation Resistance
- High
- Contact Resistance
- Low Ohm ()
- Max. Voltage
- 440V Milliamperes (mA)
- Operating Temperature
- -20 C to 70 C Rankine
- Size
- Standard
- Color
- Black & Red
- Weight
- 250g Carat
- Mounting Type
- Flat Mounting
- Current Rating
- 20A
- No Of Poles
- Single Pole
About Flat Type Current Collector With Assembly
| Usage/Application | Busbar |
| Material | Copper |
| Brand | Crane Kit |
| Collector Current | 125A |
| Model Name/Number | CC125a |
| Temperature | 50 DEGREE |
Crane Kit is an expert company of Engineering, Manufacturing, Supply & Stockiest all type of crane kit items like a DSL Shrouded, Current collector, Heavy duty, Enclosed Busbar System, C-Track Festoon system, Wireless radio remote control, Anti-collision device, Phase DSL indication Lamp, Flat Cable, Round Cable, Limit switch, Industrial Brakes, Thruster Brake, Brake shoe, Resistance box, & Spare Accessories etc...
A flat type current collector with assembly is an industrial device used to safely transfer electrical power from a stationary conductor bar (DSL busbar) to moving equipment like overhead cranes or hoists.
Technical Specifications
- Material: Copper alloy and insulated plastic
- Max Current: 25A
- Max Voltage: 440V
- Mechanical Life: Above 1 million operations
Key Features
- Sliding Contact: Uses a fitted shoe to glide smoothly along the flat busbar track.
- Insulated Design: Features durable plastic and alloy housing to prevent accidental short circuits.
- Compact Assembly: Pre-wired or integrated bracket setup for simple installation on moving machinery.
