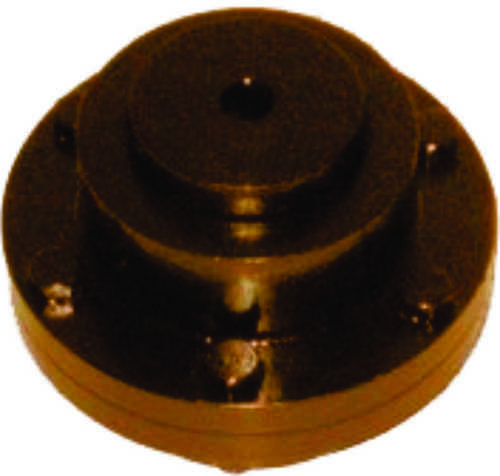

Crane Flexible Geared Couplings

Get a Price/Quote

Crane Flexible Geared Couplings Specification

Bore
Customized as per requirement

Head Code
Standard

Torque
Up to 225,000 Nm

Connection
Flange Connection

Max. Speed
Up to 7500 RPM

Sealing
Grease Lubricated

Material
Forged Steel, Alloy Steel

Structure
Flexible Geared Coupling

Standard
AGMA, DIN, IS Standard

Inner Diameter
30 mm 400 mm

Outer Diameter
As per model

Application
Power Transmission, Industrial Machinery, Heavy Equipment, Steel Plants, Rolling Mills

Surface Treatment
Black Oxide, Phosphating

Technique
Precision Machined

Shape
Round

Color
Natural Metallic Finish, Black

Weight
Depends on Model / Size

Misalignment Capacity
Up to 1.5 angular

Number of Teeth
Internal & External

Module Range
1.5 - 6 M

Lubrication
Grease or Oil

Temperature Range
-20C to +120C

About Crane Flexible Geared Couplings

Flexible Geared Couplings

We offer flexible geared couplings that are known for their reliability and positive power transmission. Our range of flexible geared couplings are extensively used for overcoming different types of misalignment like: Angular: Where the Axis of the connected Shafts intersect at the center of the Coupling. Parallel Offset: Where the Axis of the connected Shafts are parallel but not within the same straight line. Combined Angular: Where the offset Axis of the connected Shafts are neither parallel nor do they Intersect. For achieving an accurate alignment and proper balance, the hub of our couplings is machined using EN-9 steel forging. The assortment of our flexible geared couplings can be availed in two configurations like Full Geared and Half Geared Half Rigid.

Engineered for Precision and Durability

Constructed from high-quality forged or alloy steel, Crane Flexible Geared Couplings boast black oxide and phosphating treatments to resist corrosion. Precision machining ensures compatibility with diverse industrial requirements, making them a dependable choice for maintaining alignment and transmitting power smoothly in rolling mills, steel plants, and heavy machinery.

Versatile Applications Across Industries

These couplings are suitable for a broad spectrum of power transmission needs in industrial machinery, steel production, and heavy equipment. Their flexible design accommodates up to 1.5 angular misalignment, minimizing wear on connected components and extending system lifespan. Customizable bores and sizes allow seamless integration into standard and specialized assemblies.

Reliable Performance in Challenging Environments

Operating efficiently in temperature extremes from -20C to +120C, Crane couplings retain their performance under demanding conditions. Grease or oil lubrication and robust sealing prevent contamination, ensuring low-maintenance operation and long service life even in rugged industrial environments.

FAQs of Crane Flexible Geared Couplings:

Q: How do Crane Flexible Geared Couplings accommodate angular misalignment?

A: These couplings are engineered to tolerate up to 1.5 of angular misalignment, allowing them to connect shafts that are not perfectly aligned. This feature helps reduce stress and preserve the integrity of adjoining machinery.

Q: What industries commonly use these geared couplings?

A: Crane Flexible Geared Couplings are widely used in steel plants, rolling mills, heavy equipment manufacturing, and various power transmission applications in industrial machinery.

Q: When should I opt for a customized bore or module range?

A: Customization is recommended when standard sizes do not match your equipments shaft dimensions or load requirements. Our couplings offer module ranges between 1.5M and 6M and customizable bores from 30 mm to 400 mm to ensure optimal fit and performance.

Q: Where can I purchase Crane Flexible Geared Couplings in India?

A: You can acquire these couplings through authorized dealers, distributors, exporters, importers, manufacturers, producers, retailers, suppliers, traders, and wholesalers throughout India.

Q: What is the recommended lubrication process for these couplings?

A: Regular maintenance using grease or oil is essential to ensure optimal performance and longevity. Proper lubrication reduces wear, prevents overheating, and protects internal and external teeth.

Q: How does the black oxide or phosphating surface treatment benefit the coupling?

A: These treatments enhance corrosion resistance, protect the surface from moisture and chemicals, and contribute to the couplings extended durability even in harsh industrial environments.

Q: What are the key benefits of using Crane Flexible Geared Couplings?

A: Key benefits include high torque capacity (up to 225,000 Nm), operation at speeds up to 7500 RPM, ability to absorb misalignment, robust construction, and reliable performance across a wide temperature range.
