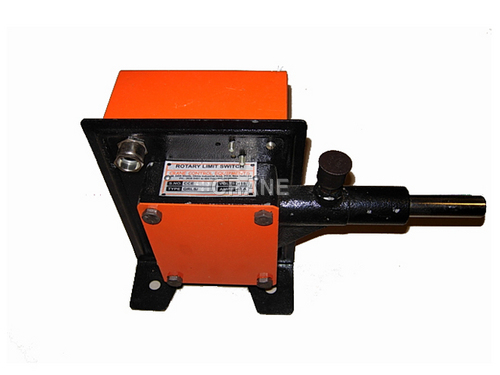

Rotary Limit Switch

Rotary Limit Switch
Rotary Limit Switch
Product Code : 75
Product Specification

We are a well established name in the domain of manufacturing and exporting Rotary Limit Switch. These products are used in control circuits of hoists, winches and various other drive mechanisms to limit their movement at the predetermined positions of working area. Our products are checked by skilled professionals to ensure flawless and hassle-free functioning. These switches are consist of rotating cams and shafts, which rotates in a fixed speed with the drive motor shaft. Rotary Limit Switch can be customized as per the specific requirements of our valuable clients.

Other Details:

Rotary Limit Switch

We are offering Rotary Limit Switch that are widely used to control circuit of reversing drives so as to limit their rotation and movement to a pre determined position. It can also be customized as per the specifications suggested by our clients.

Introduction

Rotary Geared Limit Switch GRLS is used to trip supply when the moving loads reach the extreme end positions of working zone.

Operation

A two (for more) Contact Elements are operated by respective rotating Cams, suitable adjusted on a Cam Shaft which rotates with fixed speed ratio of the drive motor shaft. The cams can be suitably positioned so that they trip motor supply and stop the motion at the required point of travel.

Application

Rotary Geared limit Switches are suitable for use on reversing drives such as Hoists, Winches, Rolling Mills and various other mechanisms used in Steel Plants such as Coke Oven, Feeding

Specifications:


Body Material

MS Sheet (Powder Coated)

Projection Degree

IP-41 Confirming To IS-13947(Part)-1)1993

Gear Tatio

48:1 60:1 d

Drive

Worm Drive

Cable Entries

2 X 3/4” Conduct

Contact Material

Silver Cadmium

Rated Voltage Insulation

500 V.A.C.

Thermal Test Current

10 Amps. / 40 Amps.

No. Of Contact

2 NC OR 4 NC

Cam Setting

Adjustable
